Speech features

A speech recogniser wants a dozen numbers per slice of sound that follow the vowel and mostly ignore the pitch. Watch one slice below pooled into bands that widen as they climb, then squeezed to 13 numbers.

Bands as wide as hearing’s

A speech recogniser looks at the sound a few tens of milliseconds at a time. On this page a frame is 50 ms: at 8 kHz that is 400 samples, and its spectrum has 257 numbers. That is far more than the recogniser wants.

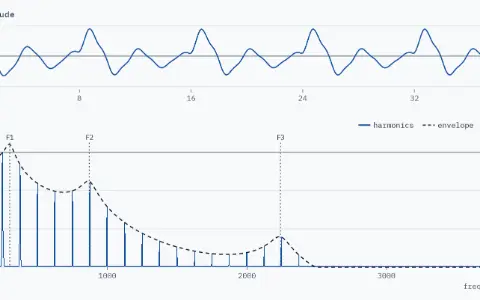

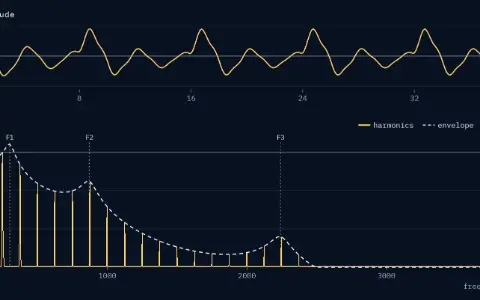

In The source–filter model of speech (30.1), in “Same pitch, different vowels”, a voiced sound was harmonics under an envelope. The harmonics carry the pitch, and the envelope’s peaks, the formants, carry the vowel. To know which word was said, I mostly need the envelope.

So the goal of this page is a short list of numbers, about a dozen per frame, that describes the envelope the way hearing does and mostly ignores the harmonics. Every signal on this page is synthetic: the vowels are 30.1’s, made from an impulse train and three formant resonators, never recorded.

The mel scale

Play a tone at 200 Hz, then one at 300 Hz. The step sounds large. Now play 3200 Hz, then 3300 Hz: the same 100 Hz sounds much smaller. Hearing spreads its attention unevenly across frequency.

The mel scale measures frequency the way listeners judge pitch distance. It comes from listening tests in which people judged the pitch distances between tones. The version I use is the one in the HTK speech toolkit:

with $f$ in hertz. It is built so that 1000 Hz is very nearly 1000 mel. Other toolkits use slightly different formulas; the idea is the same.

Below about 1 kHz, mel and hertz stay fairly close: 500 Hz is 607.4 mel. Above, it grows more and more slowly. The 1000 Hz from 1 to 2 kHz add 521 mel, but the 2000 Hz from 2 to 4 kHz add only 625.

To turn a mel value back into hertz, undo the formula: divide by 2595, raise 10 to that power, subtract 1, and multiply by 700.

Triangles equally spaced in mel

Think of a graphic equaliser whose sliders are spaced the way the ear hears: close together at low frequencies, far apart at high ones. A mel filter bank is that.

In Filter banks (23.1), in “One prototype, eight channels, a perfect sum”, every channel had the same width. Here I want widths that follow the mel scale, and I use the simplest band shape: a triangle.

The top of my range is 4000 Hz, half the sampling rate, which is $\mathrm{mel}(4000)=2146.1$. I mark 28 points equally spaced in mel from 0 to 2146.1, which is 27 steps of 79.48 mel. Then I turn each point back into hertz.

Triangle $m$, for $m=1$ to 26, rises from point $m-1$ to a peak of 1 at point $m$, and falls to 0 at point $m+1$. So each triangle’s peak sits on the feet of its two neighbours, and the triangles’ centres are 79.48 mel apart.

In hertz the first centre is 51.2 Hz and the last 3679.9 Hz. The first triangle is 106.0 Hz wide at its base, and the last is 618.3 Hz wide, 5.8 times as wide.

One frame, 26 band powers

Now the frame. I take $N=400$ samples, 50 ms, of 30.1’s /a/ at a pitch of 125 Hz: samples 1800 to 2199, from 225 ms to 275 ms into the half-second vowel.

Three steps prepare it. First comes 30.1’s pre-emphasis, $1-0.97z^{-1}$, from “The tract, recovered from the sound”: each sample minus 0.97 times the one before. I apply it to the whole vowel and then cut the frame, so every sample of the frame has been through it.

Second, a Hamming window, from Window functions compared (15.2), “Five windows, one trade”. I use its symmetric form, $0.54-0.46\cos\bigl(2\pi n/(N-1)\bigr)$ for $n=0$ to $N-1$, with $N-1$ where 15.2 has $N$. Third, a 512-point FFT, with the 400 samples padded by zeros. Its bins are $8000/512=15.625$ Hz apart, 257 of them from 0 to 4000 Hz.

This is one column of a spectrogram, as in Spectrograms & the STFT (15.5), “A row of short spectra”. The frame is long enough to show the harmonics. A Hamming window’s peak is 4 bins of the 400-point DFT wide at its base, $4f_s/N=80$ Hz. That is less than the 125 Hz between harmonics.

The power spectrum is $\lvert X[k]\rvert^2$. Each triangle pools it into one number, the band power $P_m$: every bin’s power, weighted by the triangle’s height at that bin, added up.

The first triangle touches only 6 bins, and the last 39.

Two more steps finish the job, and the picture at the top of the page shows them too. I take the natural log of each band power, $\ln P_m$, since loudness is heard on a log scale. Then I take a DCT of the 26 logs and keep the first 13 numbers. The next section looks at both steps closely.

Notice how the triangles widen as they climb: the first is 106.0 Hz wide, the last 618.3 Hz. Notice also the tallest bar, band 10, centred at 717 Hz, beside /a/’s first formant at 730 Hz.

Vowels far apart, pitches close together

Now the last two steps, and why they leave the vowel and drop most of the pitch.

Logs, then a DCT

Why a log? A band twice as loud should count as one step louder, whatever its level, and the log does that. It is the decibel idea of How big is a signal (1.3), from “Signal and noise, in decibels”, in other units. A step of 1 in $\ln P_m$ is $10/\ln 10=4.34$ dB.

The 26 logs $\ln P_m$ make the log-mel spectrum of the frame. Next comes the orthonormal DCT-II of The discrete cosine transform (13.6), on 26 points instead of 8:

with $w_0=\sqrt{1/26}$ and $w_k=\sqrt{2/26}$ for $k\ge1$. The bands are counted from 1 here, hence $2m-1$ where 13.6 had $2n+1$.

As in 13.6’s “Keep a few numbers, rebuild”, I keep the first few: $k=0$ to 12, 13 numbers. These are the MFCCs, the mel-frequency cepstral coefficients. Taking a transform of a log spectrum gives what is called a cepstrum, a name made by turning round the first letters of “spectrum”.

A warning about the name: these $c_k$ are not the Fourier series coefficients $c_k$ of Fourier series coefficients (7.2). On this page $c_k$ is always a cepstral coefficient.

For the /a/ frame of the first instrument, $c_1$ to $c_4$ are 5.57, −12.49, −3.93 and −0.85.

What each coefficient keeps

Each $c_k$ measures how much of one cosine shape runs across the 26 bands. $c_1$ is half a cosine period across the bands: it compares the low bands with the high ones. $c_{12}$ is twelve half periods, a ripple about every four bands. So the first few describe the envelope’s broad shape.

$c_0$ is different. Its cosine is flat, so $c_0$ is $\sqrt{26}$ times the average of the $\ln P_m$: it follows how loud the frame is. A louder speaker shifts every $\ln P_m$ by the same amount, which changes $c_0$ alone. So I compare vowels with $c_1$ to $c_{12}$ only.

Where does the pitch go? The harmonics are 125 Hz apart. The last triangle runs from 3381.7 to 4000 Hz and holds four of them, 3500 to 3875 Hz, so its power changes little when they move.

The lowest triangles are a different story. The first three are narrower than 125 Hz at the base, and the first, from 0 to 106.0 Hz, holds no harmonic at all. So its power depends on where the nearest harmonic sits.

Lower the pitch to 100 Hz and the first harmonic falls inside it: band 1’s log power rises by 2.1 to 3.6 for the three vowels. Raise the pitch to 160 Hz and the first harmonic moves away: band 1’s log power falls, by 0.6 to 4.0. So pitch does not vanish from the MFCCs; it mostly falls away.

Distance between two vowels

To compare two frames, I treat $c_1$ to $c_{12}$ as a point in twelve dimensions. Their distance is the straight-line one: the square root of the sum of the squared differences, coefficient by coefficient.

The test uses 30.1’s /a/, /i/ and /u/ at three pitches, 100, 125 and 160 Hz, each with the same frame and recipe as above. If MFCCs follow the vowel, a vowel at another pitch should stay close to itself, and different vowels at one pitch should be far apart. A recogniser needs that to hear the same word from a child and from an adult.

Watch each vowel’s lines as the other pitches join: the three versions of a vowel stay together, while the three vowels stay apart.

Notice the two scales. The largest pitch shift is 4.20, and the closest two vowels are 13.77 apart. The other shifts are smaller still: /i/ moves at most 3.25 and /u/ 3.45. /a/ moves most at 160 Hz, /i/ and /u/ at 100 Hz.

The “nearest-vowel rule” names each shifted version after the 125 Hz vowel it is closest to. It names all six correctly. It is a very simple recogniser, and it works here because the pitch moves the points less than the vowel does.

Speaker identification uses the same features the other way round. Instead of the vowel, it looks for the fine differences between speakers’ envelopes, which depend on the length and shape of each speaker’s vocal tract.

Worked example

Every number below was recomputed with NumPy and SciPy.

1. Hertz to mel. For 2000 Hz, $1+2000/700=3.857$, and $\log_{10}3.857=0.5863$. Times 2595, that is 1521.4 mel.
2. The first triangle. The mel step is $2146.1/27=79.48$. Back in hertz, 79.48 mel is 51.2 Hz and 158.97 mel is 106.0 Hz. So triangle 1 runs from 0 to 106.0 Hz with its peak at 51.2 Hz, and it covers bins 1 to 6, 15.6 to 93.8 Hz.
3. A louder voice. Double the amplitude and every $P_m$ grows 4 times, so every $\ln P_m$ grows by $\ln 4=1.386$. Only $c_0$ changes, by $\sqrt{26}\times1.386=7.07$.
4. Nearest vowel. /u/ at 160 Hz is 1.88 from /u/ at 125 Hz, 13.68 from /a/ and 20.74 from /i/. The nearest is /u/, so the rule reads it correctly.

Where you’ll meet this

Speech recognisers start from these features. Older ones, built on hidden Markov models, read MFCCs frame by frame. Modern neural recognisers read the log band powers directly. Stacked frame after frame, as in 15.5, they make the log-mel spectrogram.

Recognisers usually take 20 to 30 ms frames every 10 ms. The longer 50 ms frame here makes the harmonics easy to see. Speaker verification, which checks that a voice belongs to the person it claims to be, compares the same features against a stored model of that person. Music software uses them too, to sort recordings by genre or to name an instrument.

I left out the delta features, which add each coefficient’s change from frame to frame, cepstral mean normalisation, which removes a fixed channel’s colouring, and features learned by neural networks. The next chapter turns to rhythms in the body, in EEG and rhythms (31.2).

For more, see S. B. Davis and P. Mermelstein, “Comparison of parametric representations for monosyllabic word recognition” (IEEE Trans. ASSP, 1980); Rabiner and Schafer, Theory and Applications of Digital Speech Processing (2011), chapter 8; and Jurafsky and Martin, Speech and Language Processing (3rd ed. draft), chapter 16.
